Valve benches
DESCRIPTION

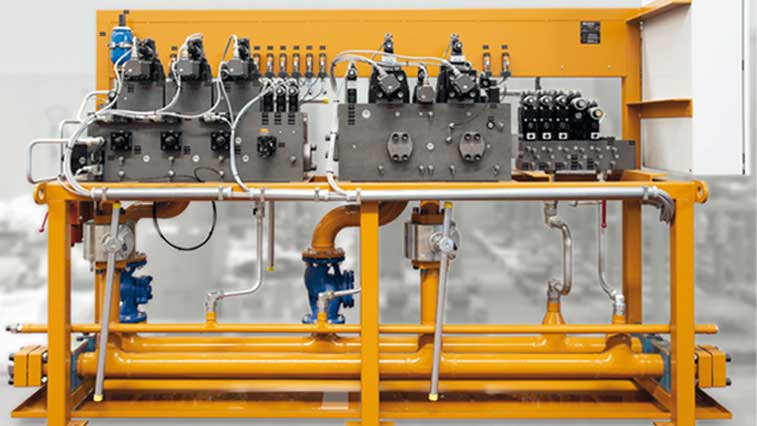

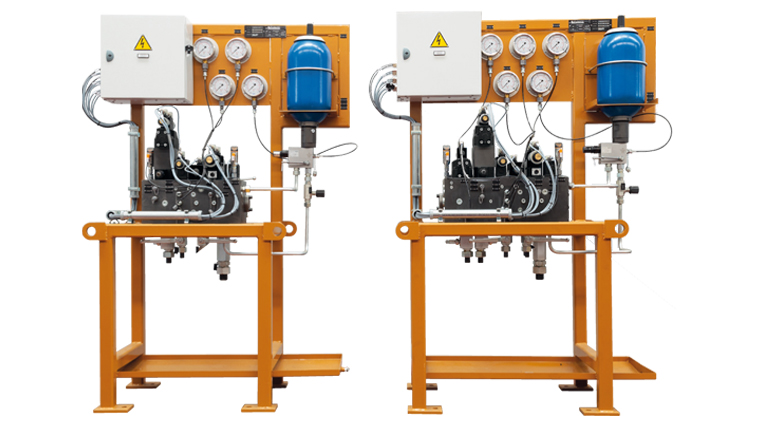

A valve bench is a grouping of one or more manifolds, a frame on which they are mounted, and electric cabling, where required. This allows the user access to all functionality of the manifolds and adds a positioning system and dedicated cabling for collection of electrical signals in a specific box, particularly connected to instrumentation or proportional valves.
Duplomatic combines its expertise in the design and creation of manifolds with its light metalwork capabilities, and its specific electrical know-how in the management of analogue and digital signals. A wide range of shapes and colours, also according to the available space, allows creation of the ideal solution for the specific customer.
Certifications:
- DNV, ABS, BV, RINA, Atex 2014/34/EU, Inmetro, IECEx, PED 2014/68/EU, SIL, UL-CSA, ASMEIX & ISO 9606-1:2017 for welding processes, 2006/42/EC Machinery safety
Control processes:
- WPS, PQR, NDT, PM
Share
|
Contact us
Technical features
- Operating pressure and flow rates supported:
- Pressure up to 500 bar
- Flow rate up to 27000 l/min
- Seals:
- NBR
- FPM
- Materials:
- Carbon Steel
- Stainless Steel 304-316L
- Interfaces:
- ISO
- Cetop
- Surface treatments and coating:
- Traditional coating
- Zinc-nickel plating
- C5M
