Electric actuators
Electrified motion. Electromechanical actuators and systems for automation
With extensive experience in components for industrial automation, Duplomatic introduces a new range of electromechanical products:
- electric cylinders with ball recirculation and satellite rollers
- brushless motors and steppers
- servo controllers
The technical team specialised in the development of Duplomatic electromechanical solutions creates ISO-standard systems combined with customisations that represent appropriate and flexible solutions to new market requirements:
- lower electricity consumption
- more compact systems
- smart control and versatility
- hygiene and cleanliness, particularly for sectors where lubricated air and oil are not recommended
- simplification of installation and system components
Similar to mechanical actuators, electric actuators add an electric motor to the motion control.

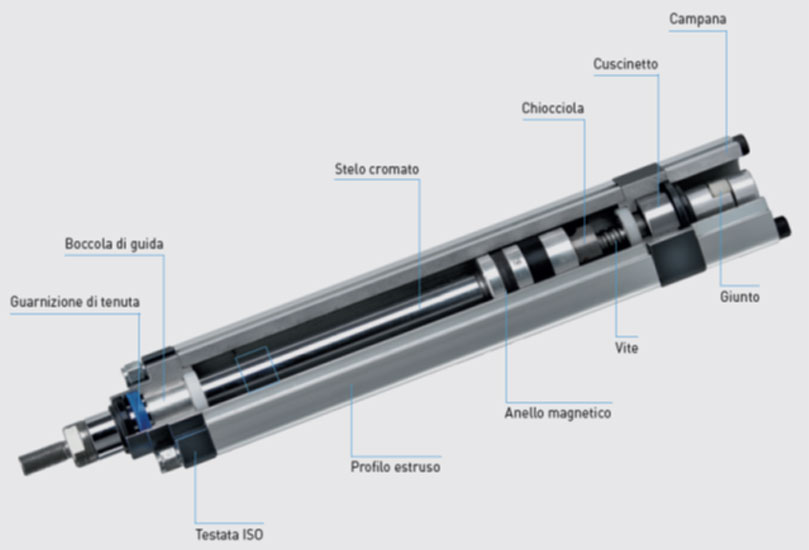

The simpler devices consist of a motor connected to the main thread on which the nut runs.
In some cases, there is an anti-rotation device that allows linear movement of the nut but prevents rotation.
The nut is then anchored to the device to be moved, making the system functional.
The key properties of a linear actuator are:
Various types of motor can be used for a linear system. The choice depends on the requirements of the application and associated loads.
In addition, encoders can be used to guarantee functionality and precision movement.

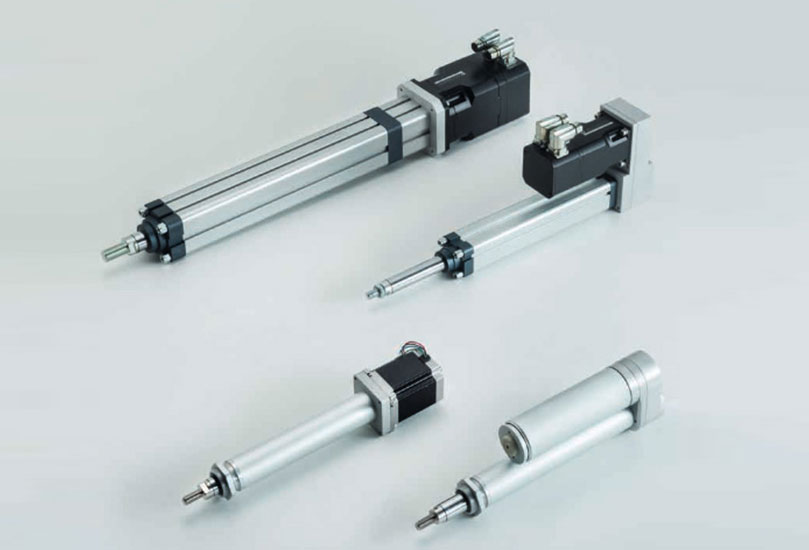

OUR ELECTRIC ACTUATORS
- Various combinations of dimensions, formats, accessories, screw types, motors and drives
- Anti-rotation system with double sliding blocks
- Full thread holes on barrel for front cap screws
- Front caps are machined from solid
- All parts in high-resistance aluminium
- Ball-recirculation screw
RANGE
- Standard sizes from 32 to 125, ISO Standards 15552 – 6020/2.
- Customised solutions for greater loads on request.
- Max. force 800,000 K
COMPLETE SYSTEMS
- Complete systems, from
electric actuator
to automation interface - Customised solutions with multiple positioning and option to establish preset programmes
DESIGN
The most suitable actuation system will be determined by the characteristics of your application (and its limits will not be determined by the actuator).
Thanks to a comprehensive offer combining various sizes and types of screws, motors and drives, Duplomatic is able to optimally fulfil your project’s potential.
PRODUCTION
The flexibility of Duplomatic electromechanical solutions extends to the production, which can include even a single piece:
- Assembly with the customer’s motors
- Personalisation of the colour of the heads
- Possibility of custom marking
CHECKS AND TESTING
The manufactured systems are tested and checked with extremely rigorous methods according to a detailed checklist.
Our products undergo endurance and maximum thrust tests with monitoring of the work cycles, carried out through a dedicated control software system. Duplomatic has conducted tests and demos on the most diverse application solutions.
COURSES
- Specialised technical courses
- Expert trainers with extensive experience working in design roles
- Issue of training materials and participation certificate
Customer feedback
-
IO-Link and the fourth industrial revolution
IO-Link and the fourth industrial revolution Talk to the IO-Link Competence Center Born in 2006 as part of PROFIBUS and PROFINET...
Find out more -
Products with added value
Products with added value in the mobile sector "The evolution of the market towards digitalization and electronics impacts not only the...
Find out more -
Dubai 2020 - It will be the Expo of records
The italian company that moves the wings of the Emirates pavillon "It's called Duplomatic Motion Solutions, has its headquarters...
Find out more -
Hydreco: SOLUZIONI TECNOLOGICHE per il controllo del movimento
"Realtà storicamente attiva nella produzione di componentistica idraulica utilizzata nelle macchine per la cantieristica, oltre che in impianti...
Find out more -
Vanguard Signals
Primacy of the only national company certified IO-Link Competence Center Vanguard Signals "The fulcrum of extraordinary progress in the field...
Find out more -
We grow a culture of innovation
Duplomatic, important territorial also for the culture on innovation. The local newspaper of Lainate talks about it. From: Lainate Notizie,...
Find out more -
Loading the Future: smart system
"Last month Duplomatic MS organized the event “Loading the Future”, to present the Lainate plant, which hosts the Hydraulic Systems...
Find out more -
The switch from mechanics to mechatronics
“How hydraulics gets ready for 4.0 transformation? Interview with Paolo Leutenegger, R&D Director of Duplomatic Motion...
Find out more -
Duplomatic Motion Solutions - RMO Meccanica Oggi
Based on the IO-Link digital communication protocol, Duplomatic has developed its own reliable and certified solution to make the component's...
Find out more -
Connected, smart Motion Control solutions
"Connectivity and Intelligence are the core issues of Duplomatic's product news. The company's consolidated experience in the field of...
Find out more -
Duplomatic Motion Solutions - EMO Hannover
Thanks to the recent developments in the motion control sector with acquisitions and investments in R&D, Duplomatic has invested in the...
Find out more
Our products
-
ECS3 electric cylinders
electric cylinders
ECS3 electric cylinders
electric cylinders
Electric servo cylinders with larger ball-recirculation screw for lasting performance and high loads. Robust design, barrel created with DMS design in high-resistance aluminium and machine-tooled front caps. Sizes available: from bore 32 to bore 125, for loads over 120kN. Option to mount any motor and/or gearbox.
-

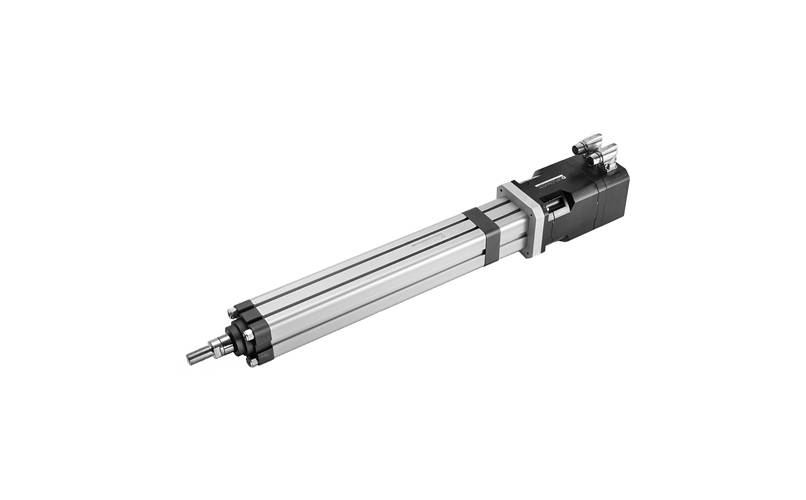

ECL3 electric cylinders
electric cylinders
Electric servo cylinders with ball-recirculation screw and lead screw
ECL3 electric cylinders
electric cylinders
Electric servo cylinders with ball-recirculation screw and lead screw. Robust design, barrel created with DMS design in high-resistance aluminium and machine-tooled front caps. Sizes available: from bore 32 to bore 125, for loads over 90kN. Option to mount any motor and/or gearbox.
-
SCK brushless drives
brushless drives
SCK drives are designed to control MBK-series motors.
SCK brushless drives
brushless drives
SCK drives are designed to control MBK-series motors. Torque control: with analogue signal ±10 V
Speed control: with analogue signal ±10 V
Positioning control: Pulse+, CCW+ CW, A+B phase (5 V-24 V). Digital inputs allow optimisation of the drive for the specific application. It is possible to enable or reset the drive, select control modes, switch electronic gear ratio, switch gain, set homing, quick stop, set end-stops, etc. -
MBK brushless motors
brushless motors
MBK brushless motors are designed to offer a wide range of size, power, voltage and feedback options
MBK brushless motors
brushless motors
MBK brushless motors are designed to offer a wide range of size, power, voltage and feedback options. They are robust and reliable, and are suitable for the majority of industrial applications. They can be interfaced with Duplomatic SCK-series drives or with other drives on the market.
-
ACD3 multi-axis controller
multi-axis controller
Multi-axis controller with HMI
ACD3 multi-axis controller
multi-axis controller
Multi-axis controller with HMI: control of brushless motors and steppers, option for closed-loop management of an analogue sensor (e.g. load cell), control of up to 3 axes, viewing, control and recording of cycle parameters for process control. Fieldbus interfaces for communication with PLC.
