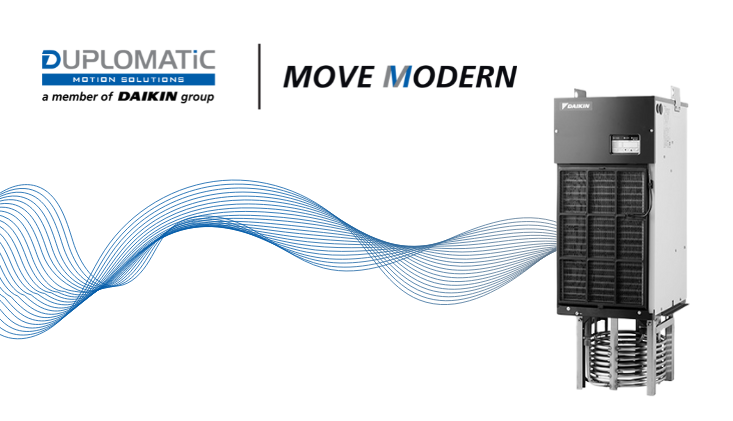

AKJ Immersion Cooler

---

---

Duplomatic MS introduces the AKJ-type immersion cooler, featuring a sealed compressor driven by an inverter, ensuring precise temperature control with an accuracy of ±0,1 °C.

Mounted directly on the tank, the unit cools the fluid through an immersed coil operating with R410A refrigerant, combined with a low-power electric motor-driven agitator.

It is suitable for cooling water, ethylene glycol, cutting fluids commonly used in machine tools, and hydraulic oils used in fluid power systems.

In the latter application, it can effectively replace a traditional water-cooled heat exchanger to cool the fluid in the tank—especially in installations where tower water is not available.

The cooler is equipped with a display that allows temperature control of the fluid in two operating modes:

• Constant temperature control, maintaining the fluid at a fixed setpoint
• Temperature synchronization, setting the fluid temperature dynamically based on the machine temperature or on the ambient temperature



More details on dedicated page:  https://duplomaticmotionsolutions.com/en/chiller-akj.html

---
