Check valve, pilot operated
CHM3
Details
- Catalog: 65251
- Size: ISO 4401-03
- Mounting Style: stackable
- Max Operating Pressure: 350 bar
- Max Flow: 50 l/min
Download
- Rendering 3D: 3D Model
- * Data sheets:
- Other languages:
- * Last update: DE (30/03/2023)
DESCRIPTION

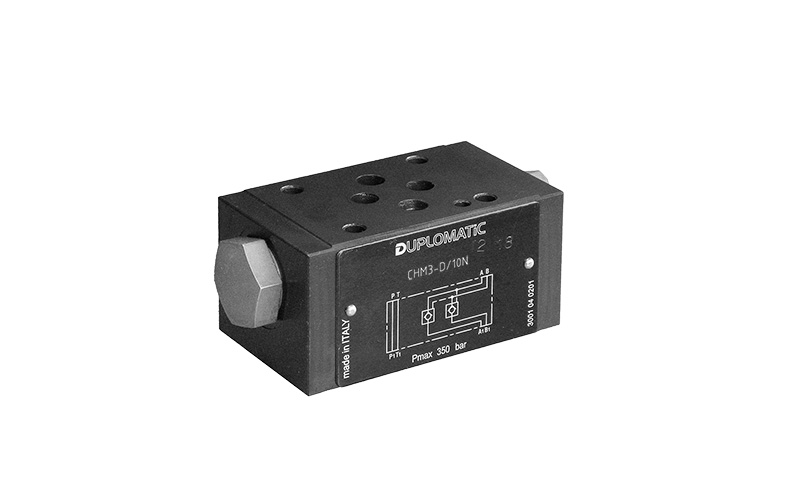

This CHM3 is a check valve (spring closing and cone on edge seals) with hydraulic pilot supply. The mounting surface is according to the ISO 4401 standards, for stackable mounting.
It allows:
- to stop the flow in a direction
- the free flow in the same direction, when opened by a pilot pressure
- to stop the flow in the opposite direction
Perfect for industrial applications, this CHM3 valve is the ideal choice to provide flow control, preventing fluid backflow and protecting the system from unwanted backflow.
