Proportional directional valves, direct operated, with on-board electronics and feedback
DSE3J*
Details
- Catalog: 83230
- Size: ISO 4401-03
- Mounting Style: subplate
- Max Operating Pressure: 350 bar
- Max Flow: 80 l/min
Download
- Rendering 3D: 3D Model
- * Data sheets:
- Other languages:
- * Last update: DE (28/04/2025)
DESCRIPTION
DSE3J, DSE3JL and DSE3JH are proportional directional valves, direct operated, with on-board electronics and position feedback, for subplate mounting.
They are used to control the position and speed of the hydraulic actuators.
On-Board Electronics Options for pressure closed loop:

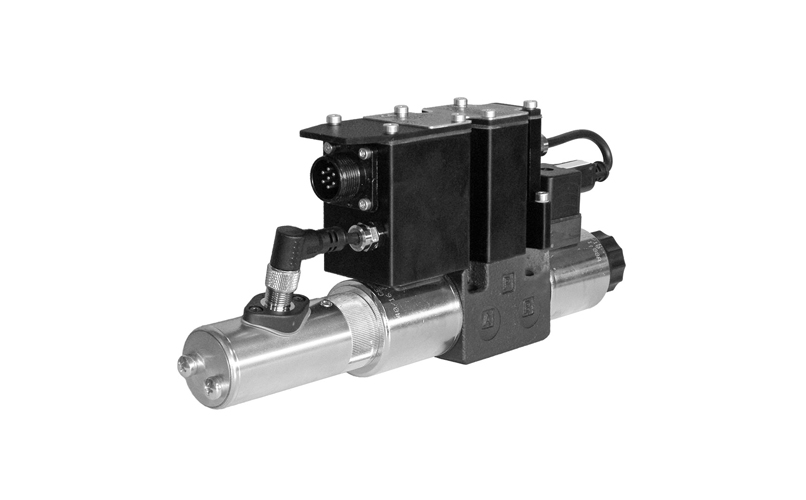

- J Version: Standard electronics with an analogue interface, with current or voltage reference signal, and a 6-pin + PE connection. Ideal for traditional applications with direct control.

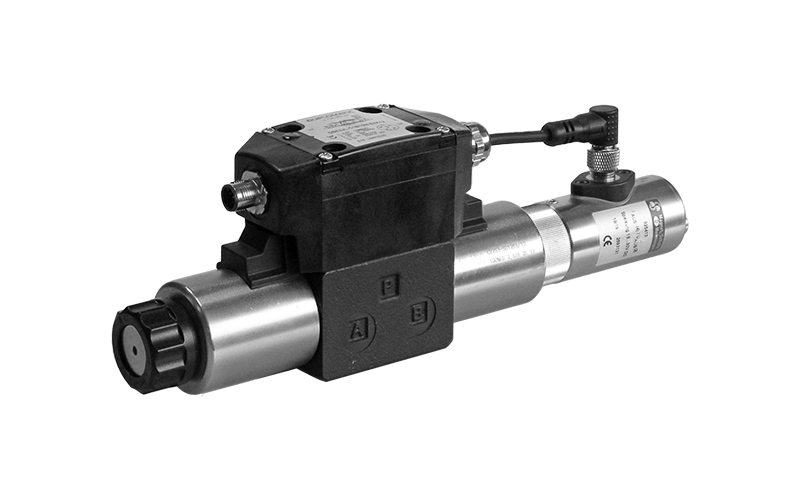

- JL Version: Compact and cost-effective electronics with Io-Link, Can-Open, or analog interface and a 5-pin M12 connection. Perfect for applications requiring advanced connectivity.

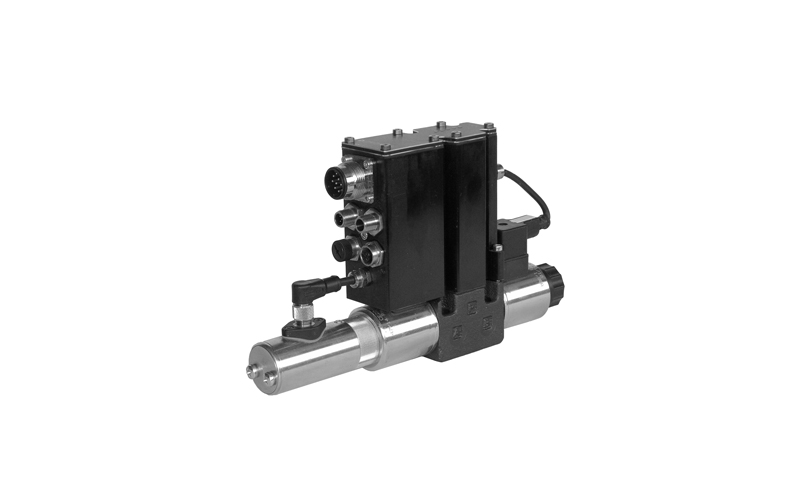

- JH Version: Supports fieldbus communication with EtherCAT, Ethernet/IP, and Profinet interfaces, using an 11-pin M12 connection. Optimal for advanced industrial applications with complex communication needs.
