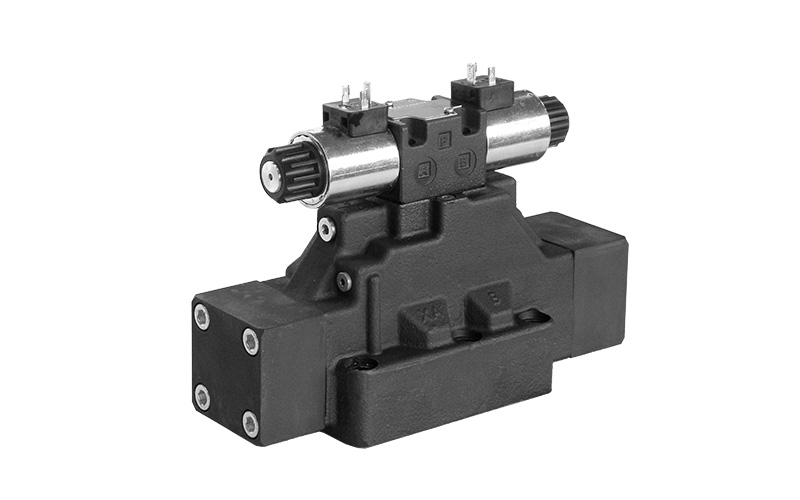

Directional valves, pilot operated, solenoid or hydraulic actuated
DSP8
Details
- Catalog: 41430
- Size: ISO 4401-08
- Mounting Style: subplate
- Max Operating Pressure: 350 bar
- Max Flow: 600 l/min
Download
- Rendering 3D: 3D Model
- * Data sheets:
- Other languages:
- * Last update: IT (15/12/2023)
DESCRIPTION
The DSP8 are directional valves, pilot operated, solenoid or hydraulic (DSC8) actuated, for subplate mounting with flow rates up to 600 l/min. A version for high pressure, up to 420 bar, is available.
The valve is available with DC or AC solenoids. DC solenoids can also be fed with AC power supply, by using connectors with a built– in rectifier bridge. Alternative to the standard manual override there is a boot protected version. The valves range also includes versions for high IP degree and corrosion resistance.
These valves replace the E5P4 valves of catalogue 41400, which are out of stock.
