Proportional 3- port pressure reducing valves, with onboard electronics in open loop
DZCE*G
Details
- Catalog: 81611
- Size:
- CETOP P05
- ISO 4401-05
- ISO 4401-07
- ISO 4401-08
- Mounting Style: subplate
- Max Operating Pressure: 350 bar
- Max Flow: 500 l/min
Download
- Rendering 3D: 3D Model
- * Data sheets:
- Other languages:
- * Last update: DE (10/11/2023)
DESCRIPTION

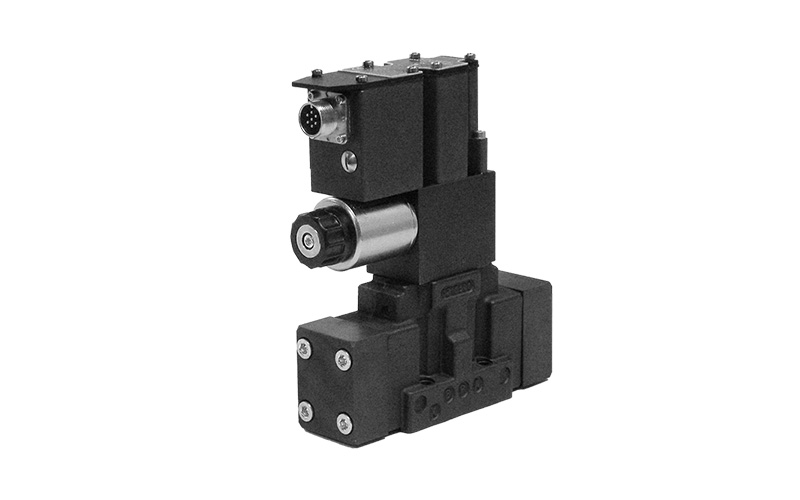

The DZCE5G, DZCE5RG, DZCE7G and DZCE8G are 3-port proportional pressure reducing valves with integrated electronics, pilot operated, for subplate mounting.
These valves act as pressure reducing valves that, besides reducing the pressure from line P to working line A, allow the flow to return from working line A to discharge T when a pressure greater than the set value is generated in the downstream circuit.

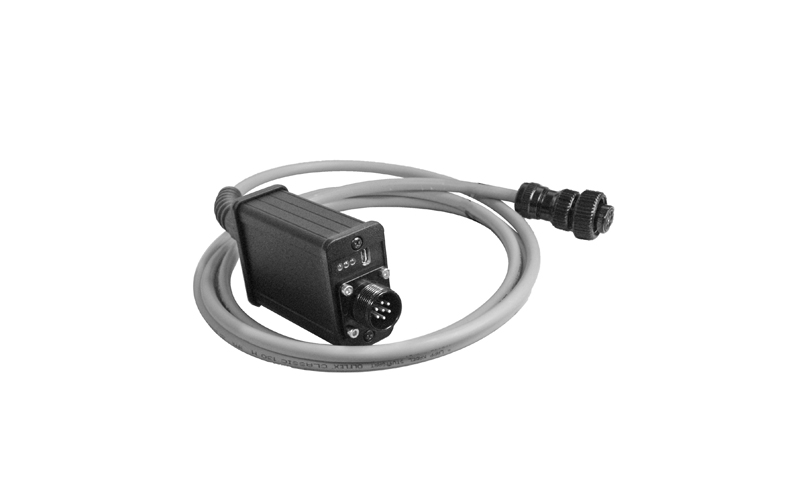

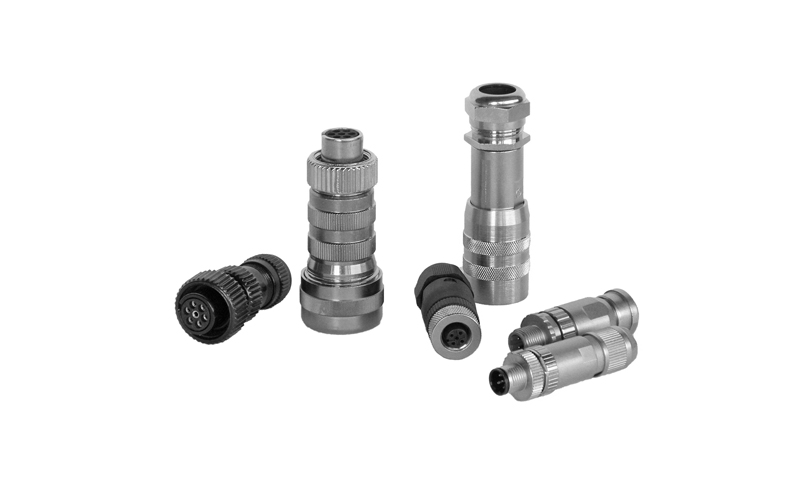

The on-board electronics has analogue interface with current or voltage reference signal with connection 6 pin + PE. The valves are easy to install. The digital card manages the setting directly.
DOWNLOAD 3D MODELS
At the service of our customers from the early design stages
Duplomatic offers the possibility to download 3D models of all products through a dedicated web portal.
How to use the service
Just go to the website https://duplomatic.partcommunity.com and register for free to configure and preview the desired model. Registration allows you to download our 3D models unlimited, choosing from the most common CAD formats. You can also generate and download a PDF containing an interactive 3D model and a summary of the technical data.
Click on the button below for the step by step registration and download guide.
Integration into your management system
That's not all. If you wish and your internal management software is able to, you can also download the entire catalogue and integrate it into your component database of all your projects.
Download: Step by step CADENAS ITA Download: Step by step CADENAS ENG
