DESCRIPTION

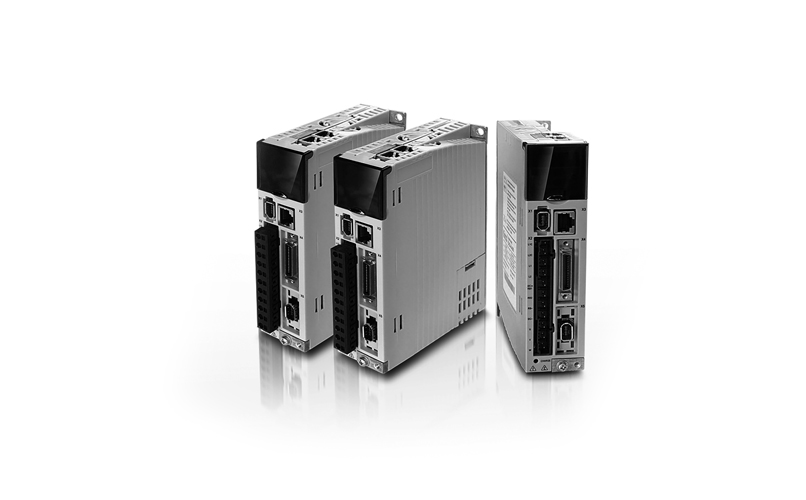

The SCK drives series is made to control MBK brushless motors. The drives allow to control the motor by: torque control: analog input ±10V speed control: with analog input ±10V position control: Pulse+, CCW+ CW, A+B phase (5V-24V). Digital inputs are available to set the drive at the optimum for the specific application. As example, it is possible to enable or reset the drive, select the control mode, switch electronic gear ratio, switch gain, set the homing, a quick stop, set end-stops, etc. Digital output can be used to monitor axis status. Power range from 100 to 3000W Supply voltage 24-70Vdc, 220Vac single-phase, 220Vac three-phase,380Vac three-phase Interface RS232, RS485, CAN bus, EtherCAT® Protections: Over-voltage, under-voltage, motor over-heat, drive over heat, short circuit.
