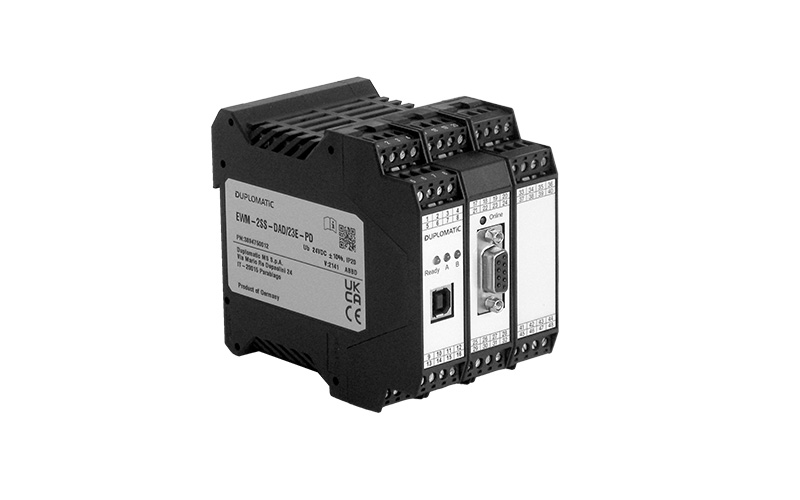

2-axes synchronization or independent positioning controller with Fieldbus interface
EWM-2SS-DAD
Details
- Catalog: 89475
- Mounting Style: DIN rail EN 50022
- Power supply: 24 V DC
Download
- * Data sheets:
- Software EWM20_SmartManager
- Other Documents:
- EWM-2SS-DAD Fieldbus interface - Start-up
- .ESI file for EWM-2SS-DAD-EC
- file .GSDML for EWM 24 Profinet
- * Last update: (04/03/2026)
DESCRIPTION
The EWM‑2SS‑DAD fieldbus control card, available in EtherCAT, ProfiNET and PROFIBUS DP versions, provides an advanced solution for synchronous or independent position control of two proportional valves and accepts both analog and digital position sensors.
The integrated PLC Ethernet interface ensures fast and reliable communication. EWM‑2SS‑DAD cards can be easily configured via USB using the EWM20_SmartManager software, available for download on this page.
The EWM‑2SS‑DAD is suitable for applications requiring precise control of hydraulic actuators, including industrial robotics, automation systems and process control.
Start‑up manuals and device description files are available for download to registered users.
Descriptor files for previous hardware series 22 and 23 can be downloaded HERE.
