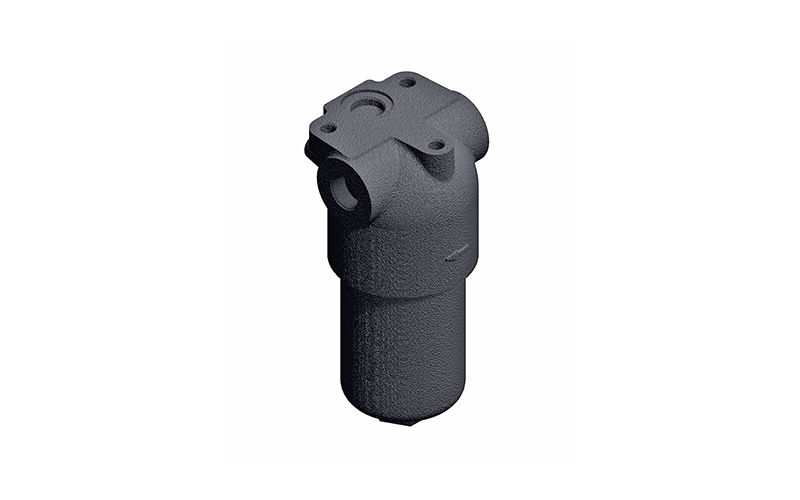

Medium pressure filter for in-line mounting
FPM
Details
- Catalog: 95221
- Mounting Style: inline
- Max Operating Pressure: 315 bar
Download
- Rendering 3D: 3D Model
- * Data sheets:
- Other languages:
- * Last update: DE (03/02/2025)
DESCRIPTION
The FPM pressure filters are designed for inline mounting with BSP threaded connections of 1/2" or 3/4", suitable for systems with an operating pressure up to 315 bar.
The filter cartridge replacement is quick and easy: the container end is shaped to facilitate unscrewing using a hex key. Filter cartridges are available in standard (S) or long-life (L) versions, both with a collapse differential pressure of 21 bar.
FPM filters come standard with an integrated bypass valve, while the differential clogging indicator, available in visual or electrical-visual versions, must be ordered separately.
