Proportional pressure relief valves, direct operated, with on-board electronics and pressure feedback
PDE3J*
Details
- Catalog: 81231
- Size: ISO 4401-03
- Mounting Style: subplate
- Max Operating Pressure: 350 bar
- Max Flow: 2 l/min
Download
- Rendering 3D: 3D Model
- * Data sheets:
- Other languages:
- * Last update: DE (13/05/2022)
DESCRIPTION

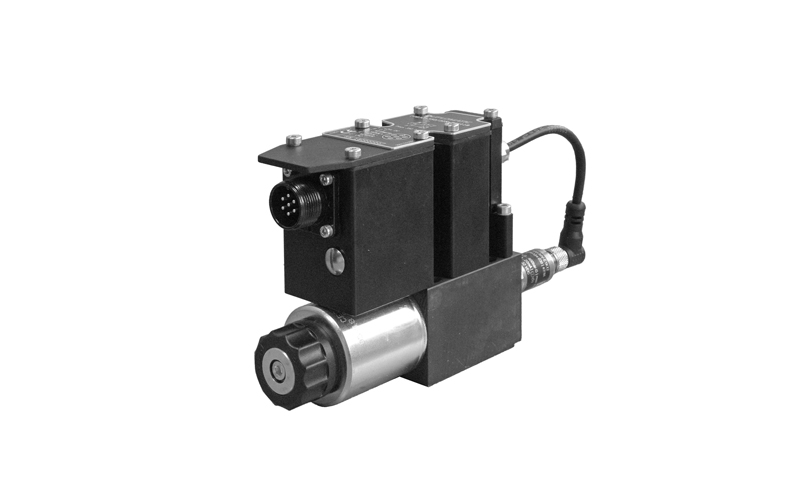

The PDE3J, PDE3JL and PDE3JH are proportional pressure relief valves, direct operated, with on-board electronics and feedback, for subplate mounting. They are suitable to pilot two-stage valves, for closed loop pressure control in hydraulic circuits. Three pressure regulation ranges are available, up to 350 bar.
The valves are available with different types of on-board electronics for pressure closed loop.
The J version is our standard electronics with analogue interface with current or voltage reference signal with connection 6 pin + PE.
The JL version comes with compact box with Io-Link, Can-Open or analog interface and 5 pin M12 connection.
The JH version has interface for fieldbus communication type EtherCAT, Ethernet/IP, Profinet, with 11 pin M12 connection.
DOWNLOAD 3D MODELS
At the service of our customers from the early design stages
Duplomatic offers the possibility to download 3D models of all products through a dedicated web portal.
How to use the service
Just go to the website https://duplomatic.partcommunity.com and register for free to configure and preview the desired model. Registration allows you to download our 3D models unlimited, choosing from the most common CAD formats. You can also generate and download a PDF containing an interactive 3D model and a summary of the technical data.
Click on the button below for the step by step registration and download guide.
