Proportional pressure relief valves, pilot operated, with on-board electronics for open loop
PRE3G*
Details
- Catalog: 81251
- Size: ISO 4401-03
- Mounting Style: subplate
- Max Operating Pressure: 350 bar
- Max Flow: 40 l/min
Download
- Rendering 3D: 3D Model
- * Data sheets:
- Other languages:
- * Last update: DE (04/04/2025)
DESCRIPTION
The PRE3G, PRE3GL, and PRE3GH are proportional pilot operated pressure reliefl valves, for subplate mounting. They controls the pressure in hydraulic circuits.
On-Board Electronics Options for open loop:

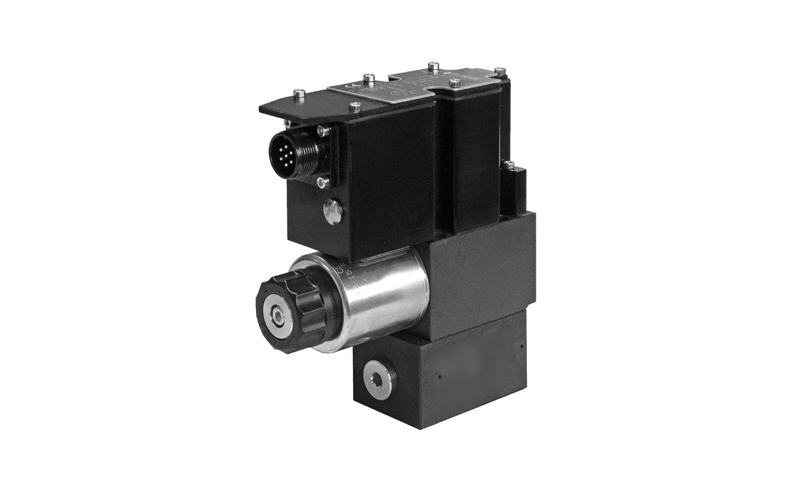

- G Version: Standard electronics with an analogue interface, with current or voltage reference signal, and a 6-pin + PE connection. Ideal for traditional applications with direct control.

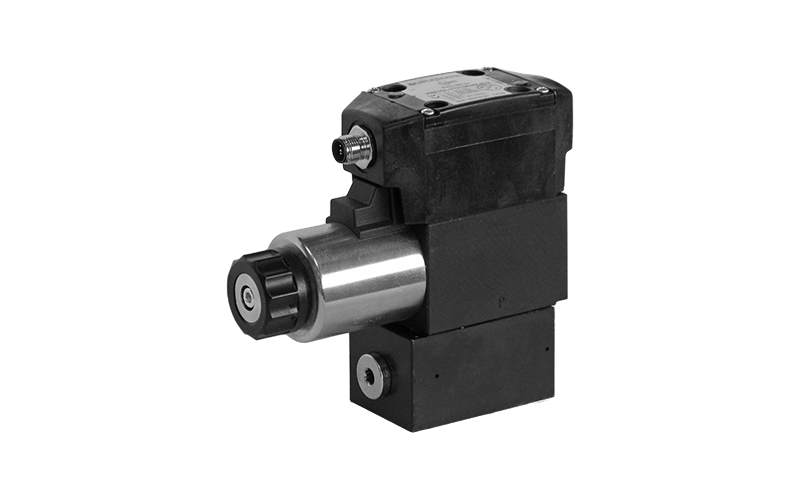

- GL Version: Compact and cost-effective electronics with Io-Link, Can-Open, or analog interface and a 5-pin M12 connection. Perfect for applications requiring advanced connectivity.

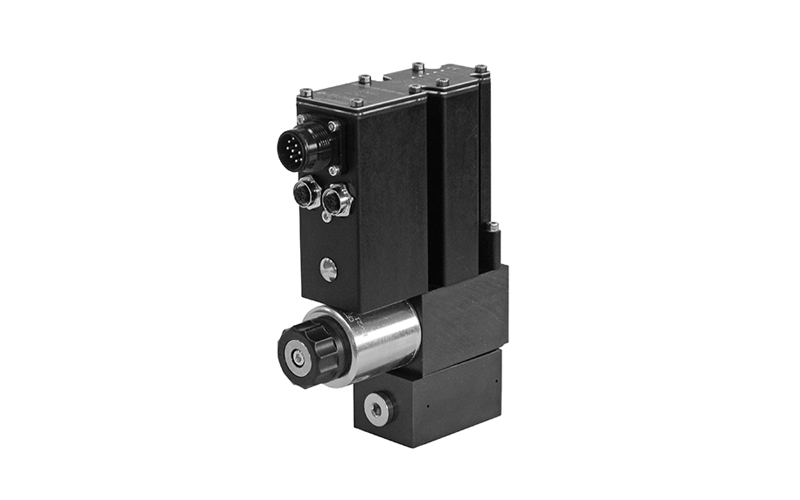

- GH Version: Supports fieldbus communication with EtherCAT, Ethernet/IP, and Profinet interfaces, using an 11-pin M12 connection. Optimal for advanced industrial applications with complex communication needs.
