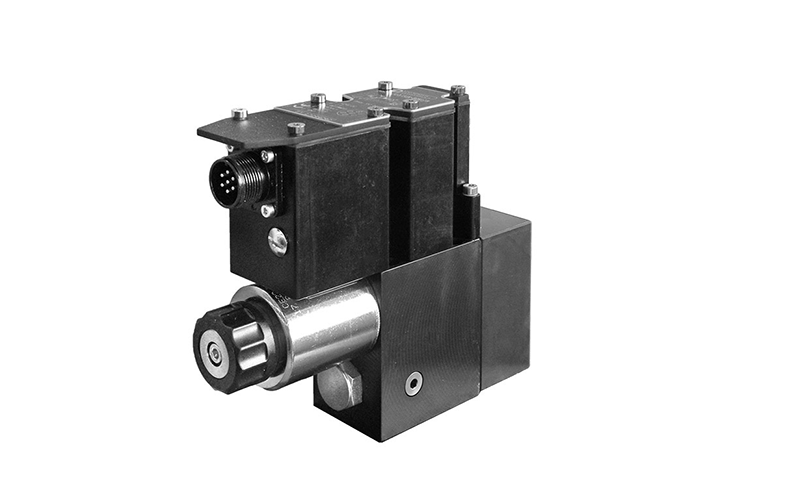

Proportional 3-port pressure reducing valve, pilot operated with on-board electronics
PZE3G*
Details
- Catalog: 81502
- Size: ISO 6264-06
- Mounting Style: subplate
- Max Operating Pressure: 350 bar
- Max Flow: 40 l/min
Download
- Rendering 3D: 3D Model
- * Data sheets:
- Other languages:
- * Last update: DE (31/03/2025)
DESCRIPTION
The PZE3G, PZE3GL, PZE3GH are 3-way proportional pressure reducing valves, pilot operated, with on-board electronics. For subplate mounting.
Their function is to regulate the outlet pressure inside the working line (A) to a value proportional to the command, reducing the pressure into the P line and also relieving to the tank the overpressure of the working line.
On-Board Electronics Options for open loop:
- G Version: Standard electronics with an analogue interface, with current or voltage reference signal, and a 6-pin + PE connection. Ideal for traditional applications with direct control.
- GL Version: Compact and cost-effective electronics with Io-Link, Can-Open, or analog interface and a 5-pin M12 connection. Perfect for applications requiring advanced connectivity.
- GH Version: Supports fieldbus communication with EtherCAT, Ethernet/IP, and Profinet interfaces, using an 11-pin M12 connection. Optimal for advanced industrial applications with complex communication needs.
