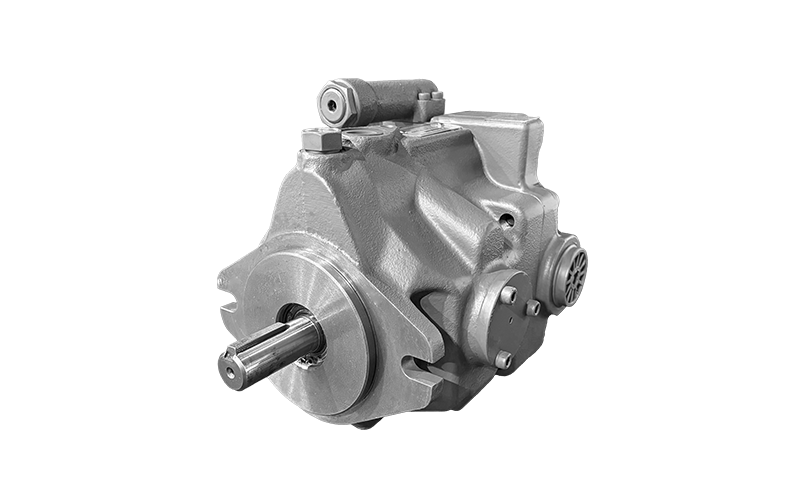

Variable displacement axial-piston pumps for medium pressure
VPPD
Details
- Catalog: 16150
- Max Displacement: 37,7 cm3/rev
- Max Operating Pressure: 210, 250 bar
Download
- Rendering 3D: 3D Model
- * Data sheets:
- Other languages:
- * Last update: DE (08/01/2025)
DESCRIPTION
The VPPDs are variable displacement axial piston pumps, suitable for medium pressure open circuit applications, silent and reliable.
They are available in three displacements of 15, 23 and 38 cm3/rev, with mounting flange type SAE J744 -2 holes, SAE A and SAE B for the VPPD-038. The shaft-end is straight without thread, keyed. Radial oil ports are with BSPP threaded connection.
Available pump controls: PC pressure compensator, PCR remote pressure compensator, PQC (load sensing) flow/pressure control.
The screw placed on the pump cover allows displacement adjustment, limiting the swash plate angle of the pump.
