Proportional pressure reducing valves with on-board electronics for open loop
ZDE3G*
Details
- Catalog: 81520
- Size: ISO 4401-03
- Mounting Style: subplate
- Max Operating Pressure: 100 bar
- Max Flow: 15 l/min
Download
- Rendering 3D: 3D Model
- * Data sheets:
- Other languages:
- * Last update: DE (31/03/2025)
DESCRIPTION

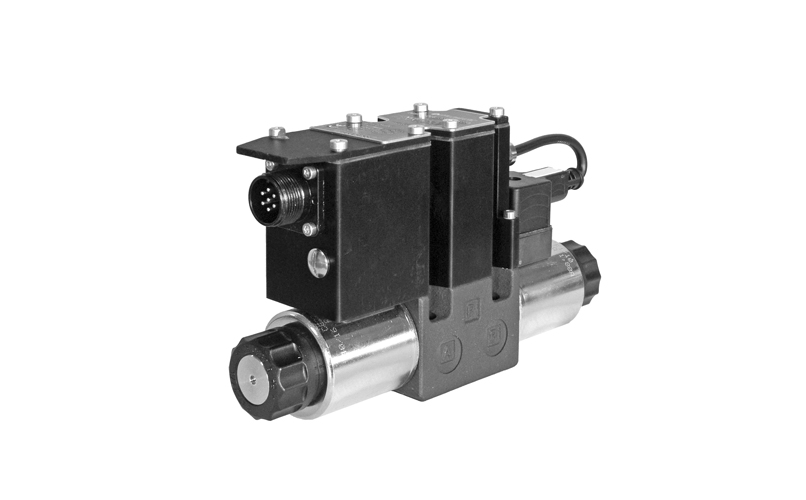

The ZDE3G, ZDE3GL and ZDE3GH are proportional pressure reducing valves, direct operated, for subplate mounting. They reduce pressure in the secondary circuit branches thus ensuring stability of controlled pressure in the event of variations of the flow rate through the valve.
On-Board Electronics Options for open loop:
- G Version: Standard electronics with an analogue interface, with current or voltage reference signal, and a 6-pin + PE connection. Ideal for traditional applications with direct control.
- GL Version: Compact and cost-effective electronics with Io-Link, Can-Open, or analog interface and a 5-pin M12 connection. Perfect for applications requiring advanced connectivity.
- GH Version: Supports fieldbus communication with EtherCAT, Ethernet/IP, and Profinet interfaces, using an 11-pin M12 connection. Optimal for advanced industrial applications with complex communication needs.
