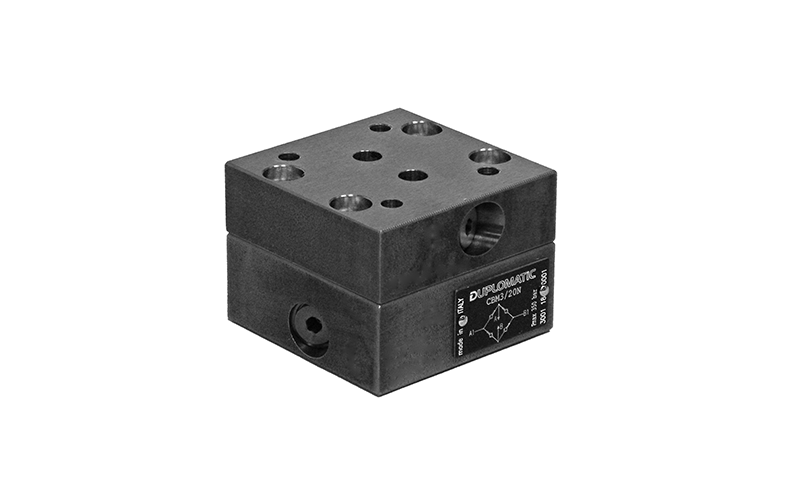

Graetz-Bridge Flow Control Valve
CBM3
Details
- Catalog: 65220
- Size: ISO 4401-03
- Mounting Style: stackable
- Max Operating Pressure: 250 bar
- Max Flow: 20 l/min
Download
- * Data sheets:
- Other languages:
- * Last update: IT (10/03/2026)
DESCRIPTION
The CBM3 is a modular, non‑compensated flow control valve based on the hydraulic Graetz‑bridge principle.
It ensures a constant unidirectional flow at outlet port A, while port B acts as the return path, regardless of whether the main supply is fed from A1 or B1.
This behaviour makes it ideal for circuits in which the flow direction may reverse during the operating cycle.
The mounting surface of the CBM3 features a bolt‑hole pattern and port layout compliant with the ISO 4401‑03 standard, allowing straightforward integration into standardised valve stacks.
The CBM3 is typically installed beneath compensated flow control valves, such as the Duplomatic RPC1 and RPCED1.
In this configuration, it operates as a rectifier plate, ensuring a stable and constant flow direction towards the compensated valve, even in the presence of reverse flow caused by actuator movement or variations in the duty cycle.
