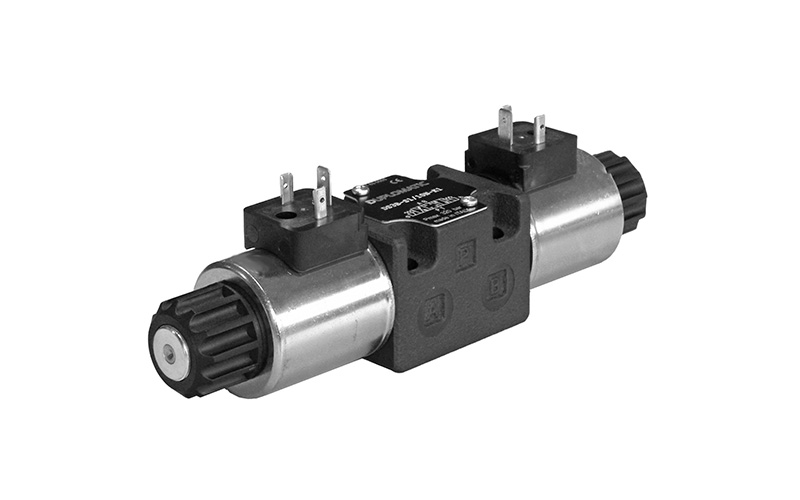

Solenoid actuated directional valve
DS3B
Details
- Catalog: 41155
- Size: ISO 4401-03
- Mounting Style: subplate
- Max Operating Pressure: 350 bar
- Max Flow: 80 l/min
Download
- * Data sheets:
- Other languages:
- * Last update: DE (03/03/2026)
DESCRIPTION
The DS3B is a direct-acting solenoid valve designed for precise control of fluid direction and flow, with a maximum pressure of 350 bar and a flow rate up to 80 l/min. Suitable with subplate mounting according to ISO 4401-03 standards.
Available in 3-way and 4-way configurations, with spring return or mechanical retention, the valve body is made of high-strength cast iron to ensure reliability and long service life. The large internal passages minimize pressure drops, optimizing overall efficiency. Interchangeable coils and wet-armature solenoids ensure stable performance over time.
Thee valve is available with DC power supply. As an alternative to the standard manual override, a boot protected manual override is available.
It is also available with zinc-nickel finishing, providing a salt spray resistance of up to 120 hours.
