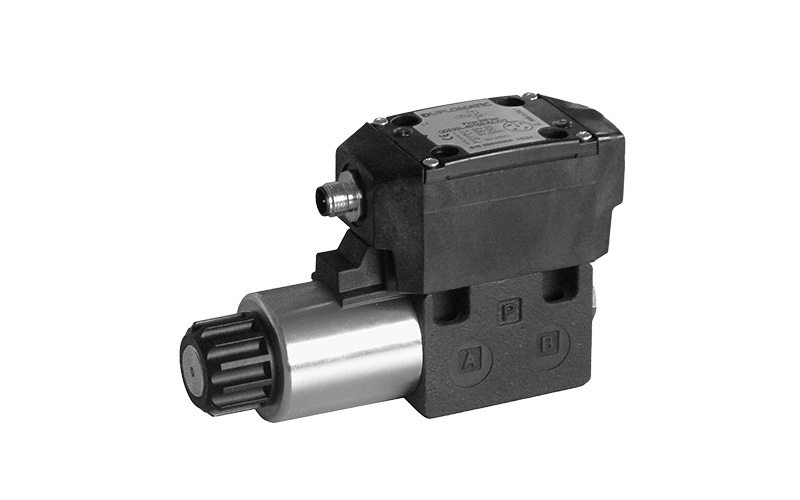

Proportional flow control valves, compensated
QDE*
Details
- Catalog: 82220
- Size:
- ISO 4401-03
- ISO 4401-05
- Mounting Style: subplate
- Max Operating Pressure: 250 bar
- Max Flow: 80 l/min
Download
- Rendering 3D: 3D Model
- * Data sheets:
- Other languages:
- * Last update: DE (06/06/2022)
DESCRIPTION
The QDE3 and QDE5 are compensated proportional flow control valves, with pressure compensation, for subplate mounting. These valves work in 2 or 3 ways, depending on how the interface is made on the mounting surface. They are used for flow control in branches of a hydraulic circuit or for the speed control of hydraulic cylinders. They are available in two sizes, in 5 flow adjustment ranges of up to 80 l/min. They can be controlled directly by a current-controlled power supply, or by an electronic card, to be order separately.
