Throttle flow control valve, double-acting
RS*
Details
- Catalog: 31200
- Size:
- 1/4" BSP
- 3/8" BSP
- 1/2" BSP
- 3/4" BSP
- 1" BSP
- 1" 1/4 BSP
- 1" 1/2 BSP
- Mounting Style:
- screw-in cartridge
- inline
- Cavity: D-10 B
- Max Operating Pressure: 400 bar
- Max Flow: 220 l/min
Download
- Rendering 3D: 3D Model
- * Data sheets:
- Other languages:
- * Last update: DE (06/06/2023)
DESCRIPTION

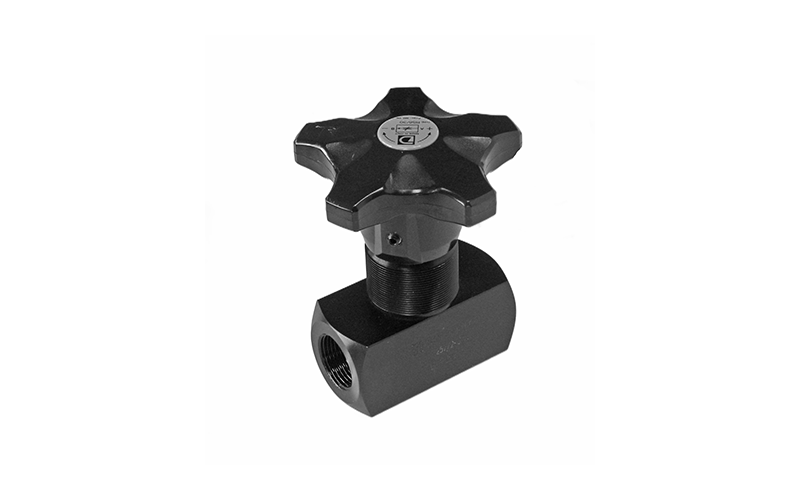

The RS* and RS*-I are throttling flow control valves, double-acting, designed to provide precise and reliable flow regulation.
They are available in two versions:
In-line mounting: directly on pipes from 1/4” BSP to 1 1/2” BSP, with flow rates up to 220 l/min.

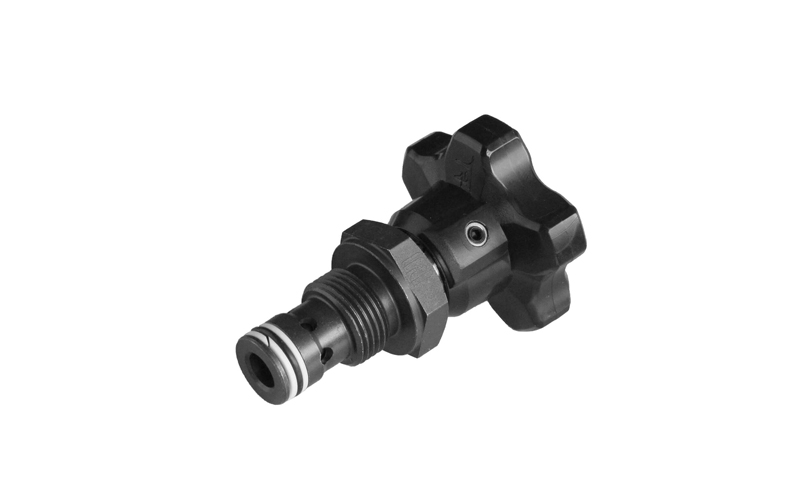

Screw-in cartridge with metric thread: for manifold mounting, with flow rates up to 160 l/min.
In addition to flow regulation, they can also be used as shut-off valves, ensuring effective sealing when fully closed. The adjustment knob features a locking screw, allowing the set position to be secured and preventing accidental adjustments.
