Pressure reducing valves, three-port

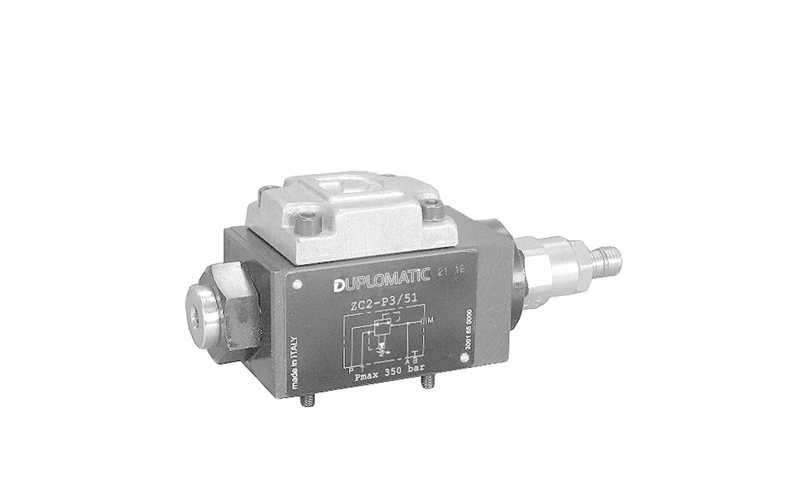

ZC2
Details
- Catalog: 24300
- Size: ISO 5701-03
- Mounting Style: subplate
- Max Operating Pressure: 350 bar
- Max Flow: 25 l/min
Download
- Rendering 3D: 3D Model
- * Data sheets:
- Other languages:
- * Last update: DE (05/06/2023)
DESCRIPTION
ZC2 are 3-port pressure reducing valves for subplate mounting. They are used to reduce pressure in the working line for (i.e. for a load balancing or for a hydraulic counterweight) and relief the exceeding to the tank line. They are designed with ISO 4401 mounting interface. The B port is not employed. The ZC2 valve is available in three pressure control ranges up to 210 bar. The pressure is adjustable by means of a socket hex adjustment screw or by a knob.
