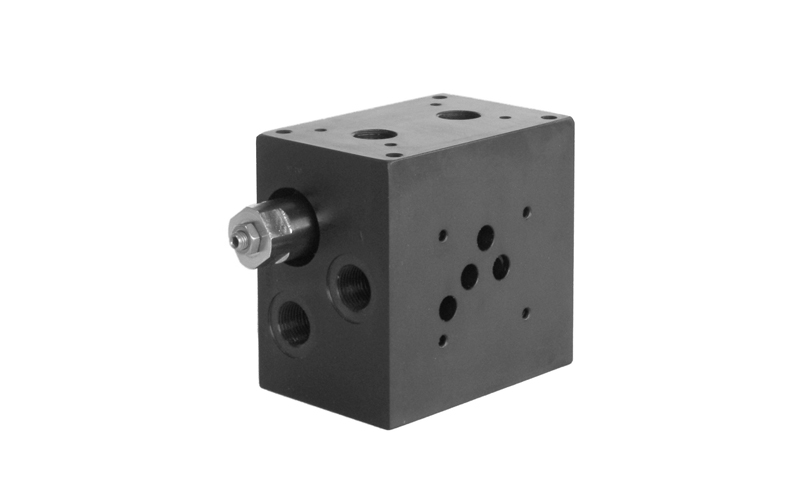

Subplates for ISO 4401-05 valves
P4D*
Details
- Catalog: 53000
- Size:
- per ISO 4401-03
- for ISO 4401-05
- Mounting Style: stackable
- Max Operating Pressure: 350 bar
- Max Flow: 100 l/min
Download
- Rendering 3D: 3D Model
- * Data sheets:
- Other languages:
- * Last update: DE (19/09/2025)
DESCRIPTION
This series of modular subplates has been designed for the construction of hydraulic circuits. It can be used directly on power packs or installed at any other section of the machine.
The subplates are assembled using four tie-rods, and the sealing seats are incorporated in the subplate.
This results in compact assemblies, complete with pressure and return lines. In each subplate, one face is used for connection to the working lines, while the other side is designed for mounting valves compliant with ISO 4401-05 or ISO 4401-03 standards.

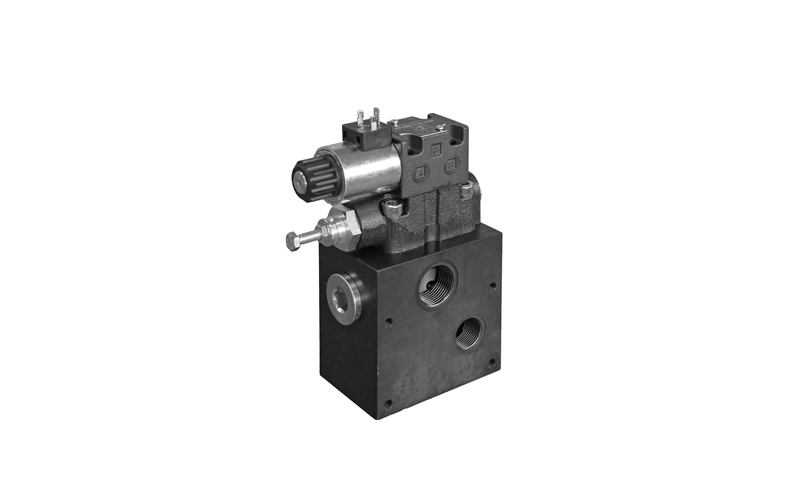

Also available with an integrated pressure relief valve.
