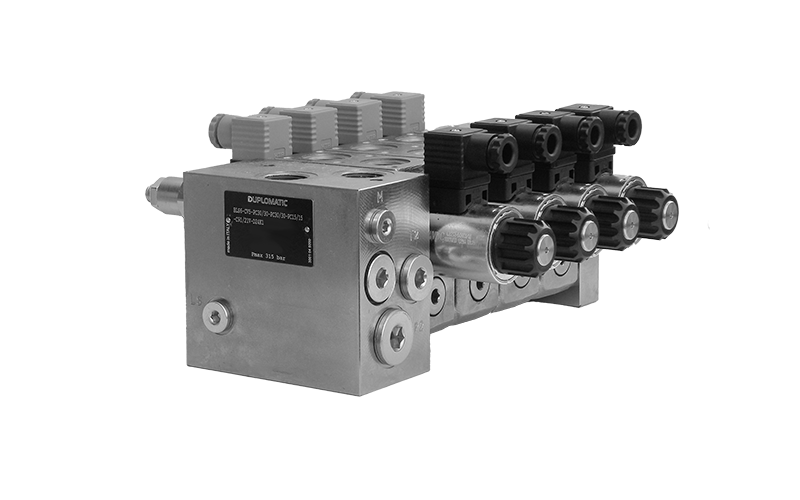

Proportional stackable valve assembly with load sensing
BLS6
Details
- Catalog: 44150
- Mounting Style: stackable valve assembly
- Max Operating Pressure: 315 bar
- Max Flow: 120 l/min
Download
- Rendering 3D: 3D Model
- * Data sheets:
- Other languages:
- * Last update: IT (02/03/2023)
DESCRIPTION

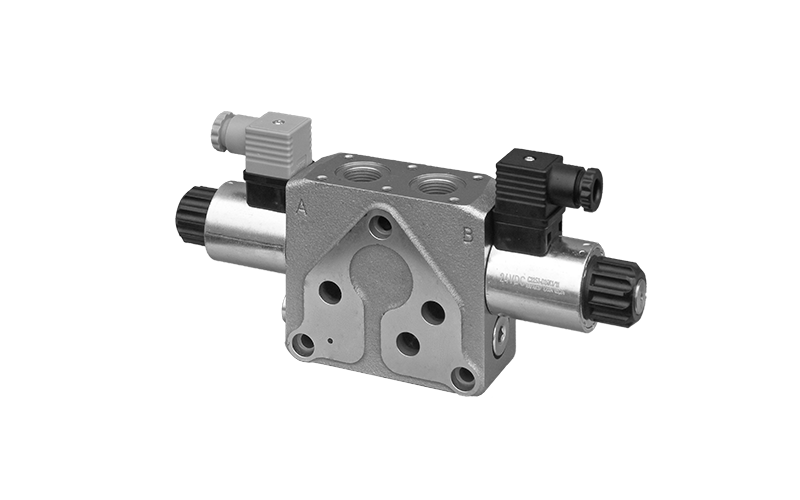

The BLS6 directional control valve is a stacked valve assembly with load sensing feature. It can be assembled with up to 8 working sections (proportional and solenoid directional valves together). Inlet elements for fixed and variable displacement pumps are available. P1, P2 and T1 ports are 3/4” BSPP threaded. Each working section is equipped with a meter-in compensator that keeps the flow constant, independently from load changes. A and B working ports are 1/2” BSPP threaded. The lever override is available as option.
